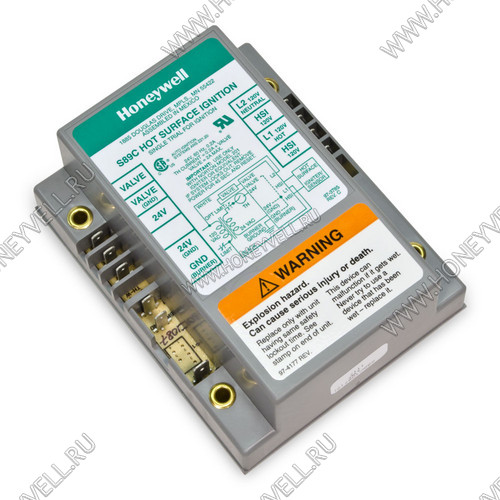

Контроллер Honeywell S89C

Provide operating control and system shutdown on loss of main burner flame in direct ignition central heat furnaces and heating appliances with hot surface igniter.

Features

• S89C,G,J are for systems with a combination igniter- sensor.
• S89C lock out after one try for ignition. S89G,H provide three tries for ignition before lockout, with 30 sec. min. purge before second and third tries.
• Compatible with Norton 201 and 271 or equivalent hot surface igniters.
• Available with leadwires for line voltage connections.
• Modules can be used on either natural or LP gas; they provide 100 percent shutoff of gas on lockout.
• Modules have relay contacts for use with any direct ignition gas control with max. 2.0 A, 24 Vat rating.
• Modules use rectification principle for flame sensing. -40 F to +175 F (-40 C to +79 C) temperature rating.

Specifications

• Description: Provide electronic control of direct hot surface ignition systems used on gas fired furnaces, boilers, and other heating appliances.
• Ignition System Type: Direct Hot Surface Ignition
• Ignition Sequence: Single trial for main burner ignition (then shut down and lockout)
• Typical Gas Control: VR8205, VR8305
• Type of Gas: Natural or LP
• Ignition Trials To Lockout: 1
• Dimensions: 5 1/4 in. high x 4 1/16 in. wide x 1 15/16 in. long
• Electrical Ratings: 24 Vac
• Frequency: 60 Hz
• Max Ambient Temperature: -40 F to +175 F
• Flame Failure Response Time: 0.8 sec. @ 5.0 microamp
• Maximum Valve Load @ 24 Vac (Amps): 2A
• Ignition Source:Line Voltage (120 VAC) Hot Surface Element (Norton Model 201)

Доступные для заказа модификации:

Модификация	Артикул
S89C 1087	S89C1087
S89C 1087 (U)	S89C1087/U
S89C 1095	S89C1095
S89C 1095 (U)	S89C1095/U
