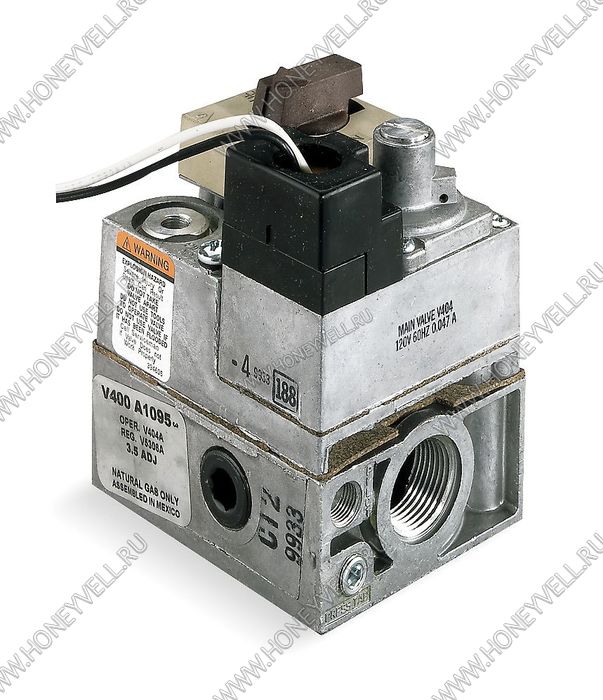

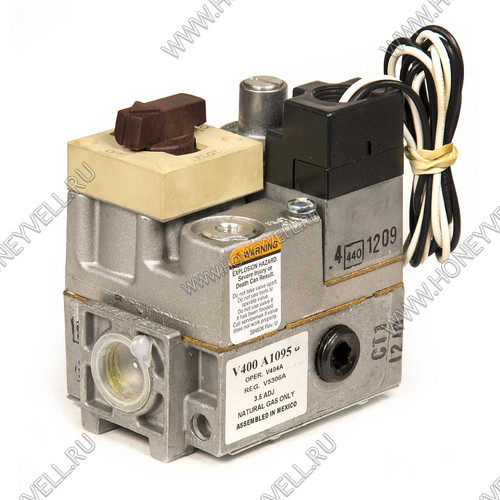

Product Overview:
- Used on gas fired standing pilot appliances with 30 mV thermocouple. Includes a manual gas valve, safety shutoff, single millivoltage automatic operator, pressure regulator, pilot gas filter and flow adjustment, pressure tapping, and thermocouple connector.
Product Features:
- Includes pilot flow adjustment screw
- Easy to install, adjust and service; all adjustments and connections are accessible from top of control
- Add separate energy cutoff (ECO) where codes call for dual safety shutoff
- Complete safety shutoff on pilot flame failure
- LITE-RITE (OFF-PILOT-ON) lighting sequence
- ECO connector for V800 models
Product Specifications:
- Description: 120 Vac Standing Pilot Gas Valve with 3/4 in. x 3/4 in. inlet\outlet, standard opening and 3.5 in. wc pressure regulator setting
- Type: Single Stage
- Ignition Type: Standing Pilot
- Type of Gas: Natural
- Inlet/Outlet Size (in.): 3/4 in. x 3/4 in.
- Body Pattern: Straight-through, multi-tapped with 1/2 in. right and left outlets plugged
- Opening Characteristics (standard, step): Standard
- Capacity @ 1 in. p.d.: 335,000 BTU/hr; 295,000 BTU/hr minimum
- Pressure Ratings (psi): 1/2 psi
- Pressure Ratings (kPa): 3.5 kPa
- Pressure Regulator Setting (psi): 3.5 in. wc
- Pressure Regulator Setting (kPa): 0.87 kPa
- Pilot Gas Outlet: Compression fitting for 1/4 in. OD tubing
- Pressure Tapping: 1/8 in. NPT with plug
- Electrical Ratings: 120 Vac
- Frequency: 60 Hz
- Temperature Range (F): 32 F to 175 F
- Temperature Range (C): 0 C to 79 C
- Mounting: 0 to 90 degrees in any direction from the upright position of the gas control knob, including vertically
- Dimensions (in.): 4 3/4 in high x 4 1/16 in. wide x 3 3/16 in. deep
- Dimensions (mm): 121 mm high x 103 mm wide x 81 mm deep
- Includes: Two 3/4 x 1/2 in.; One 1/2 x 3/8 in. Reducer Bushing/Adapters
- Approvals, American Gas Association IAS: AGA Design Certified; File No. L2025003, CGA Design Certified; File No. L2025003, UL Component Recognized
- Approvals, Underwriters Laboratories Inc: UL Component Recognized
Доступные для заказа модификации:
Модификация | Артикул |
---|
V400A 1095 | V400A1095 |
V400A 1095 (U) | V400A1095/U |
Вы можете купить газовый клапан Honeywell V400A, сделав заказ через корзину интернет-магазина.
Если вам нужна помощь в выборе Газовых клапанов серии V.. или другого оборудования Honeywell, обратитесь к нашему техническому специалисту. Это можно сделать:
- по электронной почте zakaz@honeyvell.ru;
- по телефону +7 (495) 542-34-33.
Доставку оборудования Honeywell мы производим во все регионы РФ. Самостоятельно забрать выбранный вами товар можно на нашем складе в г. Мытищи Московской области.
